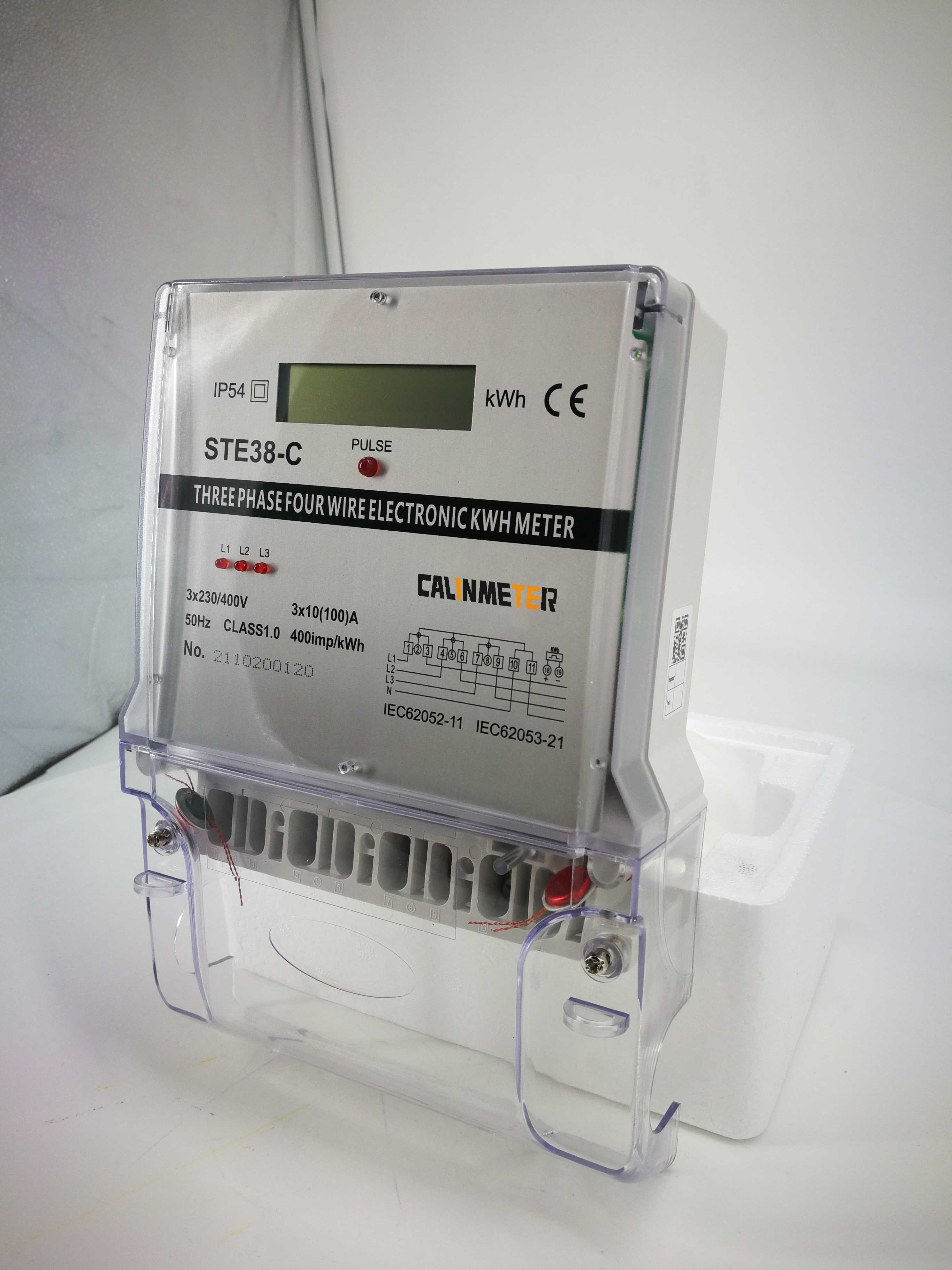

STE38-C Three phase Four wire electronic energy meter

The STE38-C is a cost-effective solution for smart metering, data reading and load balance operations.The meter goes with four-wire direct connection type, 100 Amp per phase in a compact BS housing.CT(Current Transformer) connection type with 1.5(6)Amp per phase is also available on request. It is ideal for large residential homes, small commercial and industrial applications.

The meter is manufactured by ISO9001 standards and IP54 protection rating. It offers two way communication via modular Ethernet/GPRS/PLC/RF com port and allows dynamic AMI interactions and reliable metrological operations at the same time.

Main Features

●  Automatic data logging usage and load profiles

●  Detection of significant reverse energy (SRE)

●  IEC62056-21 compliant optical & RS485 port allowing for easy data interrogation

●  On-demand and automatic load limiting profile settings

●  Built-in contactor and relay to remotely disconnect load and sub-meters (on request)

●  Tamper detection and event record such as cover open, black-out, magnetic field

●  Maximum demand measurement

●  Detailed power information such as phase voltage, current, total active power, reactive power, apparent power, total power factor, power grid frequency

● Ethernet/PLC/ RF/ GPRS/GSM communication with a head-end AMR/AMI server

●  Time of Use (TOU) / 4 tariffs /8 time divisions /100 holidays.

●  DLMS/COSEM , IEC62056 protocol compliant
